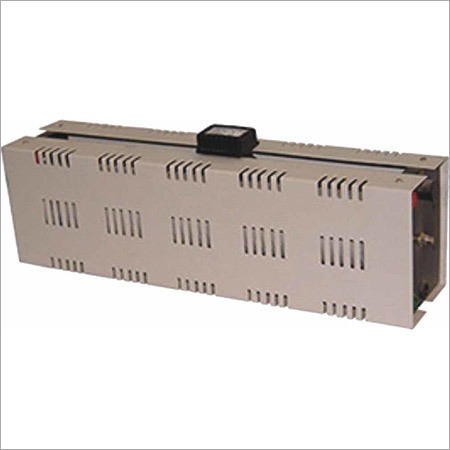

      Wire Wound Rheostats Close Type

      Wire Wound Rheostats Close Type
      Wire Wound Rheostats Close Type
      Send Inquiry
      Product Code : 21101-21108
      Brand Name : Tesca
      Price And Quantity
      • Minimum Order Quantity
      • 1 Piece
      • Price Range
      • 3000.00 - 30000.00 INR
      Product Specifications
      • Dimension(L*W*H)
      • 412 x 150 x 310 Millimeter (mm)
      • Power
      • 200 Volt (v)
      • Material
      • Steel
      • Voltage
      • 240 Volt (v)
      • Color
      • Grey
      • Weight
      • 100-500 Kilograms (kg)
      Product Description

      Layers of electrically oxidized Eureka wire are wound on an insulated heat resistant porcelain tube. The tube is mounted on cast Aluminium supports on each side with rod and nuts. A Brass guide rod is tightened with screws to the projection of the supports. The slider, which moves along the guide rod, has a double contact system and is fitted with a Phosphor-Bronze contact. Three terminals are provided, one connected to the sliding contact and the other two connected to the end windings. The resistance and current values are marked on the slider. The length of the tube varies according to the resistance required.

      Order Code :Tube Length2110121102211032110421105211062110721108
      S.No.Amps15cm20cm25cm30cm35cm40cm45cm50cm
      a10.01.52.53.54.55.56.57.58.5
      b9.0234.55.578910
      c8.03.5578910.51213
      d7.53.75.77.79.711.513.515.517.5
      e6.057.5101214161820
      f5.568111417202326
      g5.0711151923273135
      h4.21015202530354045
      i3.31420283442485766
      j2.81928384857667686
      k2.32642567086100114128
      l2.0406080100120140160180
      m1.86496125160190225250290
      n1.685130150210225300340380
      o1.4115170230290340400450500
      p1.2150225295365445520590670
      q1.0200300400500600700800900
      r0.83405106758351000116513401500
      s0.6500750100012501500175020002250
      t0.56501060134016802000235027303000
      u0.48401250165020502500290033503750
      v0.313001950260032603900460053006000
      Trade Information
      • Payment Terms
      • Telegraphic Transfer (T/T)
      • Supply Ability
      • 100 Piece Piece Per Month
      • Delivery Time
      • 4-5 Week
      • Sample Available
      • Yes
      • Sample Policy
      • Sample costs shipping and taxes has to be paid by the buyer
      • Main Export Market(s)
      • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
