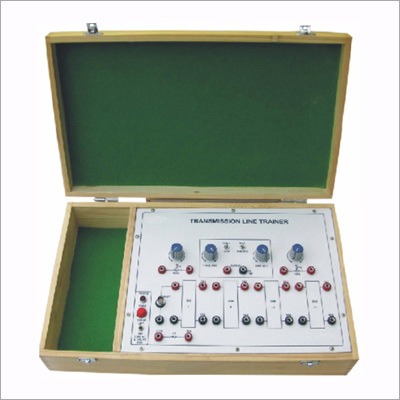

    Transmission Trainer

    Transmission Trainer
    Transmission Trainer
    Send Inquiry
    Product Code : 40510
    Price And Quantity
    • Minimum Order Quantity
    • 1
    • Unit of Measure
    • Piece/Pieces
    • Price Range
    • 10000.00 - 100000.00 INR
    Product Specifications
    • Use
    • For Laboratory
    • Material
    • Metal
    • Dimensions
    • 425 x 102 x 38 Millimeter (mm)
    • Shape
    • Rectangle
    • Color
    • White
    Product Description

    Transmission  Trainer

    Object:

    To measure the following :

    • Measuring the characteristics of a line
    • Measuring the attenuation of a line
    • Measuring the Input Impedance of the line
    • Phase displacement between the current & voltage at input of line
    • Frequency characteristic of the line
    • Study of Stationary Waves
    • Signal phase shift along the line
    • Fault localization within the line
    • Line under pulsed condition.

    Features:

    • The board consists of the following built-in parts :
    • 4 Nos. Coaxial Cables 25 meters each, total Transmission line 100 metres.
    • Two potentiometers for impedance matching.
    • Sine/Square wave Signal Generator having frequency 40KHz to 4MHz, in two bands 40KHz to 400KHz & 400KHz to 4MHz.
    • A SPDT switch to select either sine or square wave.
    • A SPDT switch to select frequency either high (400KHz to 4MHz) or low (40KHz to 400KHz).
    • A potentiometer to vary frequency high (400KHz to 4MHz) or low (40KHz to 400KHz).
    • A potentiometer to vary amplitude.
    • BNC connector to connect input.
    • Adequate no. of other electronic components.
    • Mains ON/OFF switch, fuse and jewel light.
      • The unit is operative on 230V ±10% at 50Hz A.C. Mains.
      • Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre.
      • Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections /observation of waveforms.
      • Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
      • Weight : 5 Kg. (Approx.)
      • Dimension : W 320 x H 190 x D 235

    Other Apparatus Required: Cathode Ray Oscilloscope 20MHz.
