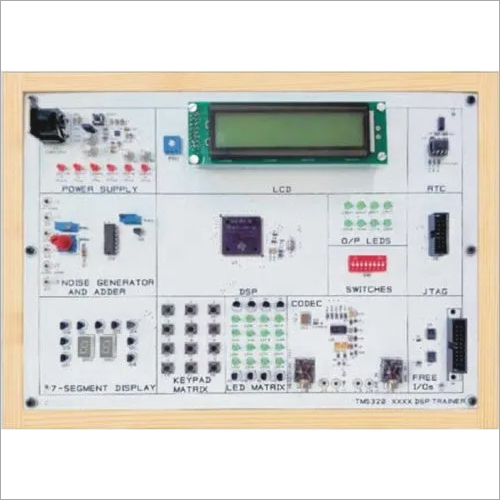

    TMS 320C6745 DSP Trainer

    TMS 320C6745 DSP Trainer
    TMS 320C6745 DSP Trainer
    Send Inquiry
    Product Code : 43040
    Brand Name : Tesca
    Price And Quantity
    • Minimum Order Quantity
    • 1
    • Unit of Measure
    • Piece/Pieces
    • Price Range
    • 3000.00 - 20000.00 INR
    Product Specifications
    • Material
    • Wood
    • Dimensions
    • 340 x 110 x 210 Millimeter (mm)
    • Shape
    • Rectangle
    • Color
    • White
    Product Description

     SPECIFICATIONS:

    • This DSP trainer kit uses Texas Instruments TMS320C6745 DSP chip a 375 MHZ device delivering up to 3648 million instructions per second (MIPs) and MFLOPS
    • This DSP Trainer is specifically designed in a modular and user friendly format with many on board interfaces.

    HARDWARE

    • JTAG supported via USB
    • TLV320AIC23B programmable stereo codec.
    • Two 3.5mm audio jacks for microphone and speaker
    • Expansion port for plug-in modules.
    • Power supply : +5V, ±12V, GND
    • 8 DIP switches for inputs and 8 LED indication for output
    • Provision for manual Reset
    • On board 4*4 LED matrix
    • On board white noise source of amplitude 0 ~ 5Vpp
    • On board 20*2 character LCD display.
    • On board 7 segment displays.
    • On board RTC interface : I2C based RTC section.
    • On board phone keypad : 0 to 9 digits and * , # characters.
    • Code composer studio for the TMS320C6745 is included.

    EXPERIMENTS:

    • To study the architecture of DSP chips - TMS320C6X instructions.
    • To verify linear and circular convolution.
    • To design FIR (LP/HP/BP) filters using windowing technique                                                                                                           (a) Using rectangular window                                                                                                                                                         (b) Using triangular window                                                                                                                                                           (c) Using kaiser window
    • To implement IIR(HP/LP/BP) using following window.                                                                                                                      (a) Chebyshev filter                                                                                                                                                                     (b) Butterworth filter
    • N-point FFT algorithm
    • N-point DFT and IDFT of given sequence.
    • Frequency response of system which is given in transfer function and differential form.
    • Power spectrum density.
    • Generation of sine wave.
    • DFT and IFFT using DIT and DIF methods.
    • Auto-correlation, cross-correlation and it’s property.
    • Sampling of sine signal.
    • Amplitude modulation, frequency modulation and FSK modulation.
    • FIR filter using Blackman and hamming window.
    • Generation of square wave
    • Implementation of decimation, interpolation and I/D sampling rate converter. st nd l Impulse response of 1 and 2 order system.
    • Addition and removal of noise.
    • Spectrogram of audio or sine signal.
    • Generation of DTMF signals and spectrogram of DTMF signal
    • RTC displayed on LCD
    • Signal companding using m-law.
    • Generation of sinusoidal wave based on recursive differential equation.
    • Generation of sinusoidal through filtering.
    • To find the FFT of given signal.
    • FIR filter using Fourier series expansion method.

    Image processing

    • Digital image fundamentals
    • Image enhancement.
    • Image filtering
    • Image reconstruction
    • Color image processing
    • Image compression
    • Image Segmentation
    • Morpholgoy image processing

    NOTE:

    • JTAG to USB Programming cable for DSP has to be purchased separately.
