      The Complete Rework Station

      The Complete Rework Station
      The Complete Rework Station
      Send Inquiry
      Product Code : 72011
      Brand Name : Tesca
      Price And Quantity
      • Minimum Order Quantity
      • 1 Piece
      • Price
      • 152000 INR
      Product Specifications
      • Power
      • 200 Watt (w)
      • Voltage
      • 230 Volt (v)
      • Dimension(L*W*H)
      • 175 x 103 x 90 Millimeter (mm)
      • Material
      • Metal
      • Color
      • Black and White
      • Weight
      • 100-200 Grams (g)
      Product Description

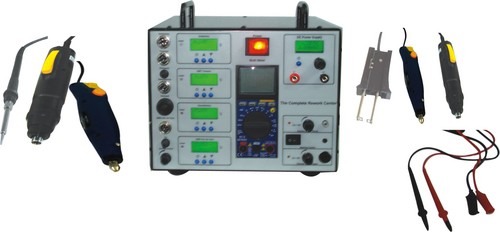

      The Complete Rework Station
      General Features:

      • Accurate and advanced temperature, control with micro controller technology
      • Set / Read of Operation
      • Separate of increase & decrease of temperature, after two seconds the actual read of Temperature will display
      • Intelligent power Management auto stand by mains interruption to save power
      • Temperature control accuracy ± 1°C
      • If sensor fails, power to the element shut off
      • The unit designed for digitally calibration thru advanced software
      • Burn Proof silicon cable thermal resistance up to 600°C
      • Power full DC Pump with 4000 RPM



      Features

      • Clear LCD Display
      • Nine Simultaneously Operations, all nine Ops Independent
      • Completely Indigenously developed
      • The Mini Lab Features in a tabletop Unit



      System Includes:
      01. Soldering Station : 24V / 60W
      02. De-Soldering Stations : 24V / 70W
      03. Thermal wire Stripper
      04. DC Power Supplies : 1.5V to 18V DC
      05. SMD Hot Air (with Built in Vacuum Pick Up)
      06. SMT Hot Tweezer (2 x 25W)
      07. Electric Screw driver
      08. Machine Center (Micro Drilling, Milling,)
      09. Auto Range Multimeter

      Soldering & De-Soldering Irons:
      Input Voltage : 190 V to 27V
      Output Voltage : 24V AC
      Soldering element : 60 W
      De-Soldering element : 70W
      Temp range : 180-480 Deg.C
      Temp Accuracy : ± 1 deg.c
      Tip to ground Potential : Under 2MV
      Tip to Ground leakage : Under 2 E
      Vacuum : 600mm/Hg.
      High Quality 24 V DC Pump with 4000 RPM

      SMD Hot Air
      Input Voltage : 220V AC
      Power Consumption : 300 W
      Air Pump : Diaphragm Type
      Capacity : 24 L / min
      Hot Air Temperature : 200 to 550 Deg. C
      SMT Tweezer : 2 x 25 W
      Thermal Wire Stripper : 1.5V / 1Amps
      Quick heat Up : With in 2 Seconds
      Stepless increase of Temperature
      (Soft PVC to tough PTFE )
      Electric screw driver
      Machine Centre
      DC power Supplies : 1.5V - 15V DC / 1Amps
      Auto Range Multimeter

      Trade Information
      • Payment Terms
      • Telegraphic Transfer (T/T)
      • Supply Ability
      • 100 Piece Piece Per Month
      • Delivery Time
      • 4-5 Week
      • Sample Available
      • Yes
      • Sample Policy
      • Sample costs shipping and taxes has to be paid by the buyer
      • Main Export Market(s)
      • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
