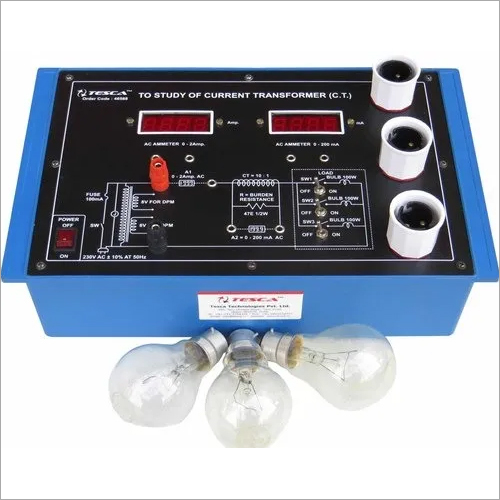

    Study of Current Transformer (C.T.)

    Study of Current Transformer (C.T.)
    Study of Current Transformer (C.T.)
    Send Inquiry
    Product Code : 46568
    Brand Name : Tesca
    Price And Quantity
    • Minimum Order Quantity
    • 1
    • Unit of Measure
    • Piece/Pieces
    • Price Range
    • 3000.00 - 20000.00 INR
    Product Specifications
    • Use
    • For Laboratory
    • Material
    • Plastic
    • Dimensions
    • 94 x 81 x 49 Millimeter (mm)
    • Shape
    • Rectangle
    • Color
    • Black and Blue
    Product Description

    Study of Current Transformer (C.T.)

    Power Electronic Training Board has been designed specifically to study Current Transformer ( C.T. ).

    Practical experience on this board carries great educative value for Science and Engineering Students.

    Object:
    To study Current Transformer.( C.T. )

    Feature:

    The board consists of the following built-in parts:
    01. Current Transformer INPUT current is 2 Amp & OUTPUT current 200 mA i.e. Ratio 10 : 1.
    02. Digital AC Ammeter 31/2 digits seven segment display having range 0-2A.
    03. Digital AC Ammeter 31/2 digits seven segment display having range 0-200mA.
    04. Three 100 W Bulbs have been provided for load. Controlled by three different switches.
    05. Adequate no. of other electronic components.
    06. Mains ON/OFF Switch and Fuse 1.5 amp.
    * The unit is operative on 230 V at 50Hz A.C. Mains.
    * Adequate no. of patch cords stack able 4mm spring loaded plug length 1/2 metre.
    * Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms.
    * Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design Procedures, Report Suggestions and Book References.
    * Weight : 3Kg. (Approx.)
    * Dimension : W 340 x H 110 x D 210

    Other Apparatus Required:
    * VARIAC INPUT 230 VAC OUTPUT 0-270 VA.C. at 2 Amps.

    Trade Information
    • Payment Terms
    • Telegraphic Transfer (T/T)
    • Supply Ability
    • 100 Piece Per Month
    • Delivery Time
    • 4-5 Week
    • Sample Available
    • Yes
    • Sample Policy
    • Sample costs shipping and taxes has to be paid by the buyer
    • Main Export Market(s)
    • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
