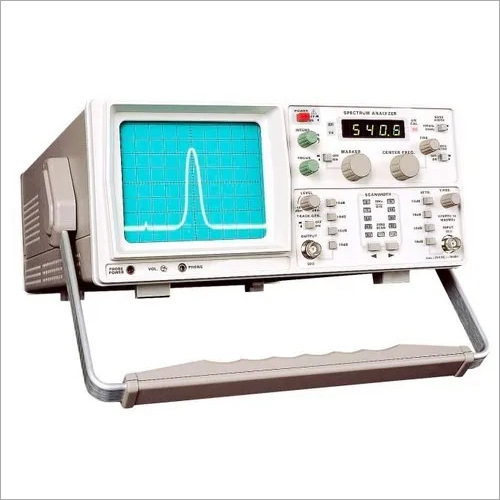

      Spectrum Analyser 500MHz with TG

      Spectrum Analyser 500MHz with TG
      Spectrum Analyser 500MHz with TG
      Send Inquiry
      Product Code : 17019
      Brand Name : Tesca
      Price And Quantity
      • Minimum Order Quantity
      • 1 Piece
      • Price Range
      • 57365.00 - 101000.00 INR
      Product Specifications
      • Material
      • Plastic
      • Dimensions
      • 600 x 450 x 600 Millimeter (mm)
      • Shape
      • Rectangle
      • Color
      • White
      Product Description
      Spectrum Analyser 500MHz with TG

      Specifications:





      Model

      17017

      17019

      Input Frequency Response

      0.15~1050MHz,3dB

      0.15~500MHz ,3dB

      Display Accuracy of Central Frequency

      ±200KHz(frequency sweep width +200KHz)



      Accuracy of Mark Frequency

      ±0.1%(frequency sweep width +100KHz)



      Frequency Display Resolution

      100KHz(4 1/2 bit LED display)



      Frequency Sweep Width

      0.1MHz/div -100KHz/div with 1,2 and step system and 0Hz/div(0 frequency sweep) accuracy : ±10%



      Intermediate Frequency Bandwidth

      20KHz and 400KHz



      Video Filter

      (when on) 4KHz



      Amplitude Range

      -107~+13dB



      Reference Level

      -27dB~+13dB(10dB for every step) ±2dB



      Average Noise Level

      -97dB(20KHz intermediate frequency width)



      Display Range of CRT Screen

      80dB(10dB/div)



      Error of Vertical Display

      ±2dB(2 with attenuator) 250MHz signal



      Input Attenuator

      0~40dB(4×10dB step)error:+/-1dB/10Db



      Maximum Input Level

      +10dBm,+25V DC(input attenuator set at 0dB) +20dBm(input attenuator set at 40dB)



      Frequency Stability

      Over 150KHz/hour



      Input Socket Type

      BNC



      Input Impedance

      50Ù



      Power Supply

      220V/110V; ±10%;50Hz/60Hz



      Tracing Signal Generator





      Input Frequency Response

      0.15-1050MHz,3dB

      0.15-500MHz,3dB

      Output Level Range

      -50~+1dB (4X10dB ),±3dB



      Output Attenuator

      0~40dB (4X10dB step) error: ±1dB/10dB



      Input Socket Type

      BNC



      Input Impedance

      50Ù



      Others





      DC Output

      +6V(for probe)



      AM Demodulation Output

      Impedance of load ≥ 16 Ù



      Trade Information
      • Payment Terms
      • Telegraphic Transfer (T/T)
      • Supply Ability
      • 100 Piece Per Month
      • Delivery Time
      • 4-5 Week
      • Sample Available
      • Yes
      • Sample Policy
      • Sample costs shipping and taxes has to be paid by the buyer
      • Main Export Market(s)
      • Africa, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
