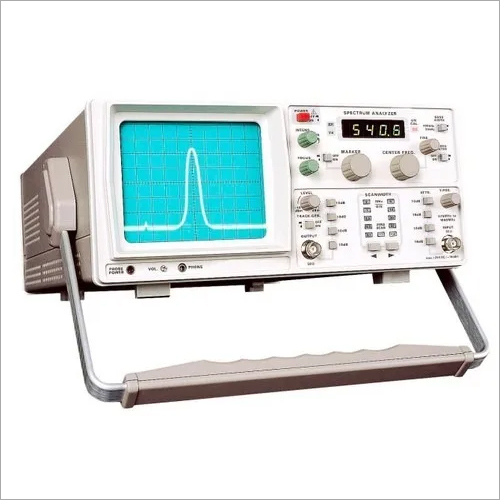

Spectrum Analyser 1050MHz

Spectrum Analyser 1050MHz
Spectrum Analyser 1050MHz
Product Code : 17016
Brand Name : Tesca
Product Description
Spectrum Analyser 1050MHz

Specifications:





Model

17016

17018

Input Frequency Response

0.15~1050MHz,3dB

0.15~500MHz ,3dB

Display Accuracy of Central Frequency

±200KHz(frequency sweep width +200KHz)



Accuracy of Mark Frequency

±0.1%(frequency sweep width +100KHz)



Frequency Display Resolution

1100KHz(4 /2 bit LED display)



Frequency Sweep Width

0.1MHz/div -100KHz/div with 1,2 And step system and 0Hz/div (0 frequency sweep) accuracy : ±10%



Intermediate Frequency Bandwidth

20KHz and 400KHz



Video Filter

(when on)4KHz



Amplitude Range

-107~+13dB



Reference Level

-27dB~+13dB(10dB for every step) ±2dB



Average Noise Level

-97dB(20KHz intermediate frequency width)



Display Range of CRT Screen

80dB(10dB/div)



Error of Vertical Display

±2dB(2 with attenuator) 250MHz signal



Input Attenuator

0~40dB(4×10dB step)error:+/-1dB/10Db



Maximum Input level

+10dBm,+25V DC(input attenuator set at 0dB) +20dBm(input attenuator set at 40dB)



Frequency Stability

Over 150KHz/hour



Input Socket Type

BNC



Input Impedance

50Ù



Power Supply

220V/110V; ±10%;50Hz/60Hz



Others





DC output

+6V(for probe)



AM demodulation output

Impedance of load ≥16Ù
