Single Phase Transformer Lab

Single Phase Transformer Lab
Single Phase Transformer Lab
Product Code : 46505
Brand Name : Tesca
Product Description

Single Phase Transformer Lab

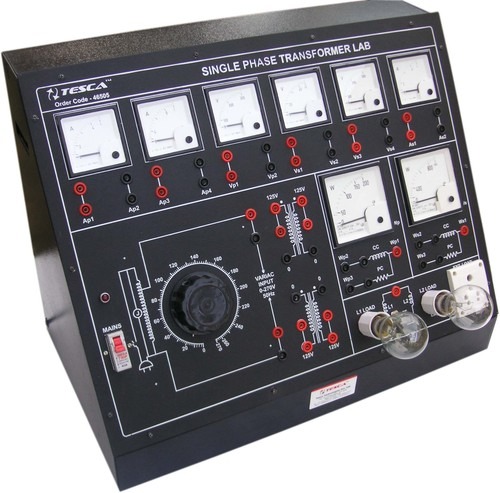

Single Phase Transformer Lab is an elite training system for the Electrical laboratories. The product helps you to get fully acquainted with the basic concepts and functioning of a Single Phase Transformer.

The product is represented in such an easy way so that each testcan be studied differently in proper sequence. The Lab practically expertises you in exercises like Polarity, Turns Ratio,Transformation Ratio, Iron Loss, Copper Loss, Efficiency etc.The varied scope of learning makes the subject understanding complete.

  • R-Core Transformer
  • Exclusive and rugged designed panel
  • Stand alone operation
  • Terminals are provided in different sections
  • Designed by considering all the safety precautions
  • High quality meters
  • Diagrammatic representation for the ease of connections
  • Provided with an extensive e-manual
  • Two years warranty

Scope of Learning

  • Study of Transformation Ratio in a Single Phase Transformer
  • Study of Polarity Test in a Single Phase Transformer
  • Study of Open Circuit Test in a Single Phase Transformer
  • Study of Short Circuit Test in a Single Phase Transformer
  • Study of Load Test and correspondingly determine the
  • Efficiency and Voltage Regulation in a Single Phase Transformer

Technical Specifications

  • Mains Supply : 230 V +10 %, 50 Hz
  • Transformer
    • Rating : 1 KVA
    • Primary Voltage : 0 - 125 V, 0 - 125 V
    • Secondary Voltage : 0 - 125 V, 0 - 125 V
  • Meters Used
    • Voltmeter (MI) : 300 V (2 Nos.)
    • Voltmeter (MI) : 50 V
    • Ammeter (MI) : 5A (2 Nos.)
    • Ammeter (MI) : 100 mA
    • Watt meter : 100 W
    • Watt meter : 500 W
  • Auto Transformer : 270 V, 5 A
  • MCB : 5 A
  • Dimensions (mm) : 450 W '600 D' 600 H
