      Sensor Trainer Board

      Sensor Trainer Board
      Sensor Trainer Board
      Send Inquiry
      Product Code : 52085
      Brand Name : Tesca
      Price And Quantity
      • Minimum Order Quantity
      • 1 Piece
      • Price Range
      • 10000.00 - 100000.00 INR
      Product Specifications
      • Material
      • Metal
      • Dimensions
      • 10.6 x 5.9 x 2.8 Millimeter (mm)
      • Shape
      • Rectangle
      • Color
      • Black
      Product Description

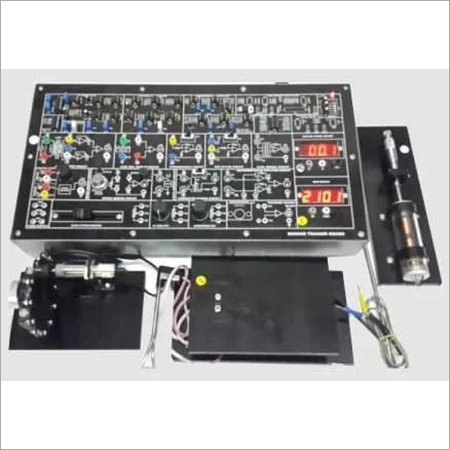

      Sensor Trainer Board (ITI)

      52085 is a Sensor Trainer offer Complete training opportunity for most commonly used Sensor available for experimenting in the Laboratory. Due to the typical Strength obtain from a sensor is not enough to process the signal; this board provides signal conditioners with Digital panel meter for display.

      Specifications:

      • On-board Digital Panel Meter provided
      • Measuring range of +/-1V
      • Input available on 2mm Banana sockets

      RPM Meter:

      • Digital RPM Meter
      • Input available on 2mm Banana sockets

      LVDT Transducer:

      • LVDTTransducer with transparent enclosure.
      • Displacement of ± 5mm
      • Primary Excitation voltage of Sine wave 1V p-p.
      • Signal Conditioning Amplifier
      • LVDT transparent With Screw Gauge unit

      Strain / Load Cell Transducer:

      • Resistive Load cell is used.
      • Load/Strain in weights can be measured up to 3 Kgs.
      • Primary Excitation voltage of 12V DC
      • Signal Conditioning Amplifier
      • Cantilever Load Cell platform Unit for Strain & Load Cell Setup
      • Weight unit up to 3Kgs

      Temperature Sensor:

      • K-type Thermocouple is used.
      • PT-100 Type RTD sensor is used
      • LM335 Sensor.
      • Thermistor Sensor

      Signal Conditioning Amplifier:

      • Heater, Thermometer, Transparent Jar unit for Temperature setup

      Speed Sensor:

      • Proximity Switch is used for Magnetic Pickup.
      • DC Motor with Proximity Switch for Speed Measurement Setup

      Smoke Sensor:

      • MQ2 Smoke Sensor.
      • Buzzer for Alarm

      Signal Conditioning & Amplifier:

      • Instrumentation amplifier
      • All interconnections are made using 2mm socket.
      • Test points are provided to analyze signals at various points.
      • All ICS are mounted on IC Sockets.
      • Bare board Tested Glass Epoxy SMOBC PCB is used.
      • In-Built Power Supply of ±5V, ±12V.
      • Attractive Metal Enclosure
      • User Manual for Experiments.
      Trade Information
      • Payment Terms
      • Telegraphic Transfer (T/T)
      • Supply Ability
      • 100 Piece Per Month
      • Delivery Time
      • 4-5 Week
      • Sample Available
      • Yes
      • Sample Policy
      • Sample costs shipping and taxes has to be paid by the buyer
      • Main Export Market(s)
      • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
