    RF l-C Oscillators(Hartley’s, Colpitt’s, Clapp’s

    RF l-C Oscillators(Hartley’s, Colpitt’s, Clapp’s
    RF l-C Oscillators(Hartley’s, Colpitt’s, Clapp’s
    Send Inquiry
    Product Code : 36126
    Brand Name : Tesca
    Price And Quantity
    • Minimum Order Quantity
    • 1
    • Unit of Measure
    • Piece/Pieces
    • Price
    • 3000 INR
    Product Specifications
    • Material
    • Plastic
    • Dimensions
    • 29 x 20x 11 Millimeter (mm)
    • Shape
    • Rectangle
    • Color
    • Black and Blue
    Product Description

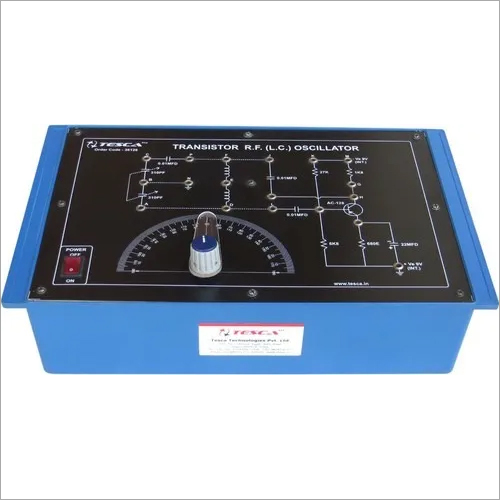

    Experiment Training Board has been designed specifically for the study of Transistor RF Oscillators such as (i) Hartley’s (ii) Colpitt’s and (iii)
    Clapp’s Oscillators using L-C.

    Object:
    To study the following transistor RF oscillators using L-C :
    01. Hartley’s Oscillator.
    02. Colpitt’s Oscillator.
    03. Clapp’s Oscillator.

    Features:
    The board consists of the following built-in parts :
    01. -9V DC at 50mA, IC regulated Power Supply internally connected.
    02. PNP transistor.
    03. Variable gang condenser.
    * Adequate no. of other electronic components.
    * Mains ON/OFF switch, Fuse and Jewel light.
    * The unit is operative on 230V ±10% at 50Hz A.C. Mains.
    * Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre.
    * Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms.
    * Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book
    References.
    * Weight : 3 Kg. (Approx.)
    * Dimension : W 340 x H 110 x D 210

    Other Apparatus Required:
    * Absorption Wave Meter
