PC - USB Mixed Signal Oscilloscope 20 MHz

PC - USB Mixed Signal Oscilloscope 20 MHz
PC - USB Mixed Signal Oscilloscope 20 MHz
Product Code : 17502
Brand Name : Tesca
Product Description

PC - USB Mixed Signal Oscilloscope 20 MHz

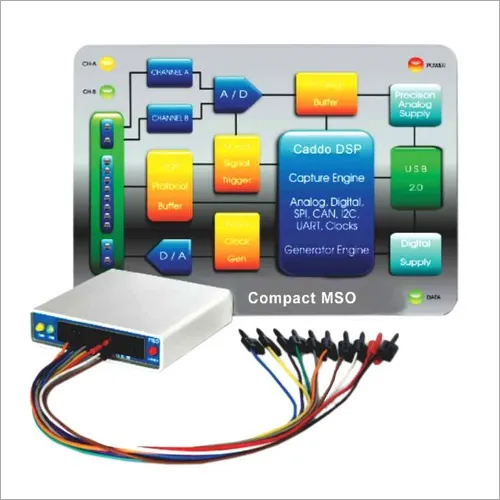

Compact MSO is a unique test instrument combining a powerful Mixed Signal Oscilloscope, Protocol Analyzer, Waveform and clock Generator, Spectrum Analyzer and Data Recorder in one tiny USB powered device.

It offers 10 capture channels (2 analog and 8 digital) with 100 MHz analog bandwidth, 40MSps logic speed and up to 12 bits analog resolution as well several output channels for its signal generators, triggers and external control signals.

Compact MSO is fast with a frame rate up to 100 Hz driving a digital Phosphor display. It works just like a quality stand-alone scope. View waveforms, plots, spectra and more on its smooth flowing real-time screen. Even live capture logic data can be viewed this way.

Alternatively large buffers support high speed one-shot capture with post-capture zoom, scrolling and measurement, or it can stream direct to disk for off-line replay and analysis.

Software is included for Windows, Mac OS X or Linux. Features include mixed signal, storage and sampling Oscilloscopes, logic timing, SPI, CAN, I2C and UART packet decoders, a spectrum analyzer, X-Y phase plotter and data recorder

Many more....

 1. Maximum bandwidth of analog channels captured using equivalent time sampling or used with the RF spectrum analyzer with waveform amplitude captured to 10% full-scale.
2. 17503 and 17502 can capture 10 channels in mixed signal mode; 2 analog + 8 logic. 17501 is limited to 9 channels;1analog+8 logic. 17503 can also capture up to 6 analog channels in data acquisition mode.
3. 17503can support 5 Input voltage ranges, 17502 has 4 and 17501 has 3 The differences relate to their respective input circuit designs.
4. Maximum sensitivity refers to the smallest measurable waveform voltages in the most sensitive range with enhanced data mode enabled at frequencies below 1 MHZ. Using the spectrum analyzer signal levels below these limits can be measured.
5. 17502 and 17503 include software switchable 5 MHz anti-alias filters for the analog inputs.
6. Probe attenuation allows the inputs of the analog channels to be rescaled when attenuating probes are used.
7. Compact MSO have DC coupled inputs.17502 and Scientech17503 include input sensing and auto offset control to allow software synthesized AC coupling. 17501 support manual offset control.
8. Native resolution is the maximum resolution of the A/D converters used. 17503 has both 8 and 12 bit converters, the latter used for macro high resolution capture.
9. Effective resolution is the maximum possible resolution of captured waveforms using DSP based filtered decimation applied to the highest resolution native capture data at sample rates below 200Ksps.
10. Timebase range includes the time scales available across all capture modes. 17502 and 17503 support a much wider timebase range than 17501 because they support sub-sampled and mixed signal streaming capture.
11. Up to four type of trigger; COMP= analog comparator trigger, MASK = multi-channel logic state trigger, SALT=sampled analog level trigger and fuse = fuse map logic state sequence trigger.
12. Up to three types of waveform generator; CLK= variable mark -space clock generator, DCV=digital controlled voltage generator, VSR= variable sampled rate waveform generator.
13. Wave-function are the function prototypes used to synthesize analog waveforms. All expect “Loadable” are built-in. Loadable is a user definable 512 or 1024 point wave-table which can accept an arbitrary waveform.
