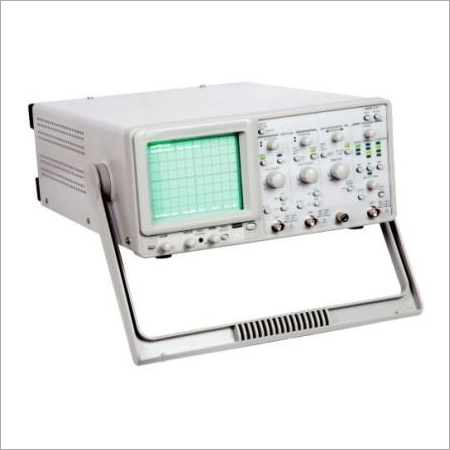

Oscilloscope 100 MHz (Digital Readout - 10 Storage)

Oscilloscope 100 MHz (Digital Readout - 10 Storage)
Oscilloscope 100 MHz (Digital Readout - 10 Storage)
Product Code : 17014
Brand Name : Tesca
Product Description

Description

17014

Division Line

6” screen with internal division lines: 8x10 divisions (1 division=1CM)

Phosphor Powder

P31 standard

Accelerating Voltage

17KV

Vertical Deflection System



Sensitivity

CH1 or CH2: 2mV/division to 5V/division +/-3% (11 steps)

Frequency

DC-100MHz

Rise Time

3.5ns

Delay Time

Rising edge observable

Max. Input Voltage

400V (DC+AC peak value) when =1KHz

Input Coupling

CH1, CH2, AC, DC, GND

Display Mode

CH1, CH2, CHOP, ALT, ADD, CH2 INV

Polar Selection

+/- (only CH2)

X-Y Operation

X axle and Y axle selection

Sensitivity

X axle: CH1, CH2 2mV to 5V/div +/-3%,EXT: 0.1V/div Y axle: 2mV to 5V/division +/-3%

Phase Difference

≤3%, DC-50KHz

Bandwidth of X axle

DC-500KHz (-3dB)

Horizontal Reflection System



Triggering Mode

NORM , AUTO

Sweep Mode

Main scan, continuous delayed scan

Triggering Source

CH1, CH2, VERT, EXT

TV Trigger

External synchronous separation circuit

Trigger level

Adjustable range

AUTO NORM

Automatically synchronized to trigger signal +/-4 divisions

Slope

+/­

Scan Time

A: 50ns/division to 5s/division B: 50ns/division to 50s/division

Accuracy

x1:10ºC to 35ºC +/-3%; 0ºC to 50ºC+/-4% x10:10ºC to 35ºC+/-4%; 0ºC to 50ºC+/-6%

Scan Expansion Width

x10

Maximum Scan

50ns

HOLD OFF time

Adjustable

Delay Time

1us to 5s

Readout Time

Vertical axle: V/DIV, UNCAL, probe factor Scan speed: S/DIV, UNCAL, MAG

Cursor Readout Function

V, T, 1/T

Correction Waveform

Frequency: 1KHz 20% Voltage: 0.5V 1%

Power Supply

220V/110V +/-10%; 50/60Hz

Dimensions

450(W) x 150(H) x 310(D)mm

Weight

9kg

Environmental Temperature

During operation: 0ºC to 40ºC Safe operation temperature: 10ºC to 35ºC Storage temperature: -20ºC to 70ºC

Humidity

Measurement: 35-85%RH Storage: 45-85%RH
