      Logic Training Board on OR/NOR, AND/NAND, NOT/Buffer

      Logic Training Board on OR/NOR, AND/NAND, NOT/Buffer
      Logic Training Board on OR/NOR, AND/NAND, NOT/Buffer
      Send Inquiry
      Product Code : 38609
      Brand Name : Tesca
      Price And Quantity
      • Minimum Order Quantity
      • 1 Piece
      • Price
      • 2500 INR
      Product Specifications
      • Material
      • Plastic
      • Dimensions
      • 340 x 110 x 210 Millimeter (mm)
      • Shape
      • Rectangle
      • Color
      • Black and Blue
      Product Description

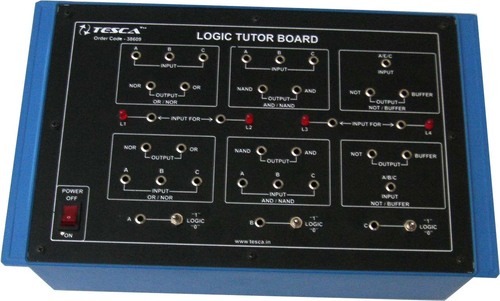

      Computer Logic Training Board has been designed specifically to study simple Logic Functions and Theorems of Boolean Algebra and to compare the truth table with experimental results. This training board offers a new method of training students in the basic theory of digital circuits and make them familiar with basic experiments in digital circuits. The board is absolutely self contained and requires no other apparatus.

      Practical experience on this board carries great educative value for Science and Engineering Students.

      Object:

        To study and verify the following :
      01. OR/NOR Function.
      02. AND/NAND Function.
      03. NOT/BUFFER Function.
      04. Simple function of several variables.
      05. Distributive Law.
      06. Commutative Law.
      07. Associative Law.
      08. De Morgan's Theorem.

      Features:
      The board consists of the following built-in parts :
      01. + 5V D.C. at 500mA, IC Regulated Power Supply internally connected.
      02. Two, 3-input NAND gates followed by an inverter to give 3-input AND/NAND gates.
      03. Two, 3-input NOR gates followed by an inverter to give 3-input OR/NOR gates.
      04. Two, NOT gates followed by another NOT gate to give BUFFER outputs.
      05. Switches for logic selection.
      06. LEDs for visual indication of status.
      07. Adequate no. of other Electronic Components.
      08. Mains ON/OFF switch, Fuse and Jewel light.
      * The unit is operative on 230V ±10% at 50Hz A.C. Mains.
      * Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre.
      * Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections / observation of waveforms.
      * Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.

      Trade Information
      • Supply Ability
      • 100 Piece Piece Per Month
      • Delivery Time
      • 4-5 Week
      • Sample Available
      • Yes
      • Sample Policy
      • Sample costs shipping and taxes has to be paid by the buyer
      • Main Export Market(s)
      • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
