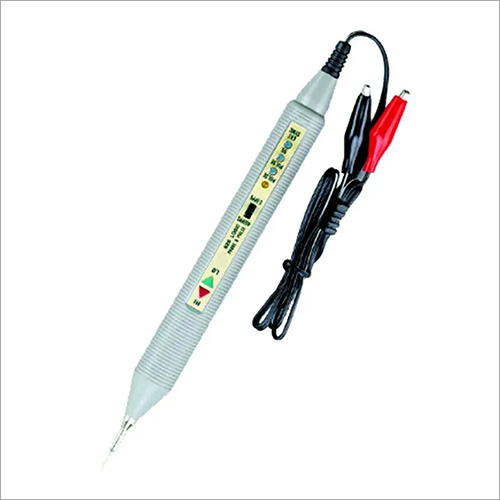

    Logic Probe 50MHz TTL/CMOS & Pulser

    Logic Probe 50MHz TTL/CMOS & Pulser
    Logic Probe 50MHz TTL/CMOS & Pulser
    Send Inquiry
    Product Code : 16914
    Brand Name : Tesca
    Price And Quantity
    • Minimum Order Quantity
    • 1
    • Unit of Measure
    • Piece/Pieces
    • Price Range
    • 200.00 - 5000.00 INR
    Product Specifications
    • Material
    • Metal
    • Dimensions
    • 10.6 x 5.9 x 2.8 Millimeter (mm)
    • Shape
    • Rectangle
    • Color
    • Black and White
    Product Description

    Logic Probe 50MHz TTL/CMOS & Pulser

    Specifications

    • Sync input impedance.........................1MW
    • Pulse Rate.................................. 0.5 / 400Hz
    • Pulse Width................................. 10mS
    • Output current..............................100mA sink / Source
    • Square Wave Output Current ............... 5mA sink / source
    • Power Supply Range..............................5 - 15V DC
    • Power Supply Protection............... 20V DC (30 seconds max.)
    • Sync Input Protection................ 120V DC (30 seconds max.)
    • Test Point Protection................. 35V DC (30 seconds max.)

    Electrical (At 23±50C, 75% relative humidity maximum):

    Model                                                                       16914

    • Maximum Input Signal Frequency.........................50MHz
    • Input Impedance.................................................120K
    • Operating supply range...................................... 4V DC Minimum,
    •                                                                               18V DC Maximum
    • TTL Logic "1" (Hi LED)... ............................ ...... 3.0±0.25VW
    •         Logic "0" (Lo LED)................................ ...... 0.75±0.25V
    • CMOS : Logic "1" (Hi LED)............................ .... 60%Vcc±5%
    •                Logic "0" (Lo LED)................................ 15%Vcc±5%
    • Minimum Detectable Pulse width........................ 10 Nanoseconds
    • Maximum Signal Input Protection.......................±70V AC/DC (for 15 seconds)
    • Power supply protection...................................... ±20V DC
    • Pulse indicator Flash Time..................................
    Trade Information
    • Payment Terms
    • Telegraphic Transfer (T/T)
    • Supply Ability
    • 100 Piece Per Month
    • Delivery Time
    • 4-5 Week
    • Sample Available
    • Yes
    • Sample Policy
    • Sample costs shipping and taxes has to be paid by the buyer
    • Main Export Market(s)
    • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
