    Laser Diode Intensity Modulation

    Laser Diode Intensity Modulation
    Laser Diode Intensity Modulation
    Send Inquiry
    Product Code : 28507
    Price And Quantity
    • Minimum Order Quantity
    • 1
    • Unit of Measure
    • Piece/Pieces
    • Price
    • 19500 INR
    Product Specifications
    • Material
    • Metal
    • Dimensions
    • 340 x 110 x 210 Millimeter (mm)
    • Shape
    • Rectangle
    • Color
    • Black
    Product Description

    Laser Diode Intensity Modulation:

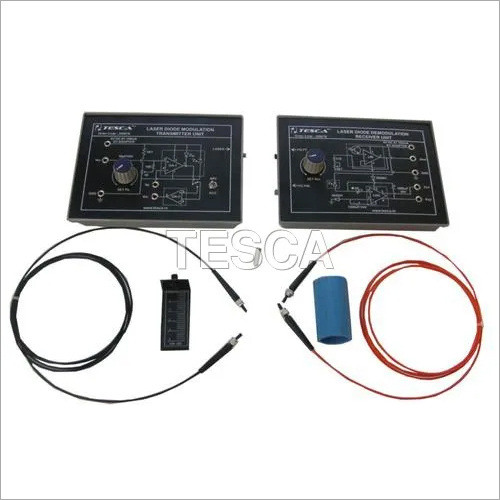

    Laser Diode Intensity Modulation and Demodulation Trainer has been developed to conduct studies on laser Diode, optical fibres and optical communication methods, by signal transmission. Practical experience on this Trainer carries great educative value for Science & Engineering Students.

    Experiments:

    • Characterization of a Laser Diode.
      • Optical Power (Po) of a Laser Diode Vs Laser Diode Forward current (I ). F
      • Monitor Photodiode Current (I ) Vs Laser Optical Power Output (Po). M
    • Study of Automatic Current Control (ACC) or Automatic Power Control (APC) Modes of Operation
      • Comparison of ACC and APC Modes of Operation.
    • Design and Evaluation of an Laser Diode (LD) Analog I System M
      • Vo Vs Vin at Specified Optical Carrier Power Levels, Po.
      • Determination of Vin (max) at Specified Po for Distortion-free Vo.
    • Design and Evaluation of Laser Diode LD Digital Transmission System
      • Risetime and Falltime Pulsewidth Distortions and Determination of Propogation Delay.
    • Transmission of Laser Through an Optical Fibre
      • To measure loss in dB of Step-index Multimode plastic Fibre Patchcord.
      • To measure loss in dB of Graded-Index, Multimode Glass Fibre Patchcord.
      • To measure loss in dB of Two Patchcords connected by the in-line adaptor.
    • Laser Free Space Communication
      • Analogue Free Space Communication System.
      • Digital Free Space Communication System.
    • Determination of Numerical Aperature of PMMA Fibre Cable
    Features:

    The trainer consists of the following built-in parts:
    • Laser Diode Transmitter unit having following built-in parts :
      • Laser Diode transmitter module.
      • 6V DC at 100mA, IC Regulated Power Supply internally connected.
      • SPDT switch to select Automatic Current Control (ACC) or Automatic Power Control (APC).
      • Potentiometer to set power output.
      • Adequate no of other electronic components.
      • Mains ON/OFF switch, Fuse and Jewel light.
    • Laser Diode Receiver unit having following built-in parts :
      • Laser Diode Receiver Module.
      • PIN Diode for measuring power of Laser Diode.
      • Potentiometer to set voltage output.
      • Adequate no. of other electronic components.
      • 6V DC at 100mA, IC Regulated Power Supply internally connected.
    • Two-metres PMMA Plastic Fibre patchcord (Cable-1).
    • Two-metres GI/mm Glass Fibre patchcord (Cable-2).
    • In-line SMA adaptor.
    • Numerical Aperature measurement Jig.
    • Mandrel.
      • The units are operative on 230V +10% at 50Hz A.C. Mains.
      • Adequate no. of patch cords stackable 4mm spring loaded plug length 1/2 metre.
      • Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections / observation of waveforms.
      • Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
      • Weight : 4 Kg. (Approx)
      • Dimension : W 340 x H 110 x D 210
    Other Apparatus Required:
    • AF/RF Generator 10Hz to 1 MHz Order Code - 16902
    • Three Digital Multimeter Order Code - 16901
    • Cathode Ray Oscilloscope 20MHz
    Trade Information
    • Payment Terms
    • Telegraphic Transfer (T/T)
    • Supply Ability
    • 100 Piece Per Month
    • Delivery Time
    • 4-5 Week
    • Sample Available
    • Yes
    • Sample Policy
    • Sample costs shipping and taxes has to be paid by the buyer
    • Main Export Market(s)
    • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
