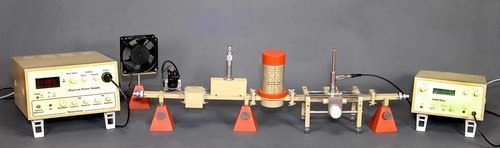

    Klystron Microwave Test Bench-1

    Klystron Microwave Test Bench-1
    Klystron Microwave Test Bench-1
    Send Inquiry
    Product Code : 10401
    Brand Name : Tesca
    Price And Quantity
    • Minimum Order Quantity
    • 1
    • Unit of Measure
    • Piece/Pieces
    • Price Range
    • 74500.00 - 105000.00 INR
    Product Specifications
    • Material
    • Metal
    • Dimensions
    • 340 x 110 x 210 Millimeter (mm)
    • Shape
    • Rectangle
    • Color
    • Yellow and Orange
    Product Description
    The Microwave Test Benches are precision made microwave systems, which use standard type rectangular wave-guide components to illustrate the essential elements of this field for study.
    The equipment consist of :
    • A selection of wave-guide components
    • The power supply for the microwave source
    • A detector
    • A meter, which monitors the detector output
    • Wall Chart
    • Microwave Chart

    These Training Benches are completely self-contained & provide the means to allow students to carry out practical work at extremely low cost. A comprehensive manual containing extensive microwave theory and a progressive series of assignments is supplied with the Trainer. Component

    Experiments:

    • Study of Reflex Klystron
    • Frequency, Guide Wavelength Measurement
    • SWR, Reflection Co-efficient Measurement
    • Impedance Measurement

    Instruments:
    SKPS ----------------------------------------------------------------1
    VSWR Meter -------------------------------------------------------1
    Components:
    Cooling Fan---------------------------------------------------------1
    Detector Mount ----------------------------------------------------1
    Fixed Short ---------------------------------------------------------1
    D.R.F. Meter--------------------------------------------------------1
    Isolator --------------------------------------------------------------1
    Klystron Mount ----------------------------------------------------1
    Matched Termination----------------------------------------------1
    Movable Short------------------------------------------------------1
    S S Tuner------------------------------------------------------------1
    Slotted Section -----------------------------------------------------1
    Tunable Probe ------------------------------------------------------1
    Variable Attenuator 20 dB ----------------------------------------1
    Wave Guide Stand -------------------------------------------------3
    Accessories:
    Cable BNC - BNC ------------------------------------------------1
    Mains Cord ---------------------------------------------------------2
    Op. Manual ---------------------------------------------------------1

    Trade Information
    • Payment Terms
    • Telegraphic Transfer (T/T)
    • Supply Ability
    • 100 Piece Per Month
    • Delivery Time
    • 4-5 Week
    • Sample Available
    • Yes
    • Sample Policy
    • Sample costs shipping and taxes has to be paid by the buyer
    • Main Export Market(s)
    • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
