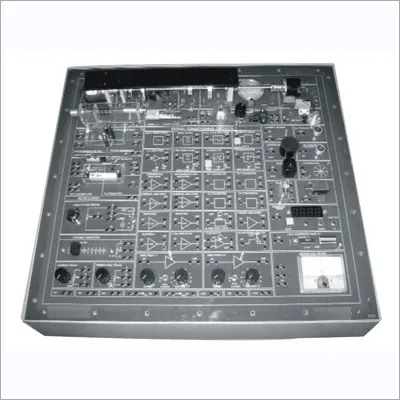

    Transducer / Instrumentation Trainer
    Rugged, self- contained panel trainer with a steel case and integral power supplies. It provides a range of transducer input and output devices together with associated instrumentation circuitry. The transducer and signal conditioning elements of this trainer are typical of those used throughout industry.

    These elements include:

    • Transducer input devices.
    • Transducer output devices.
    • Instrumentation circuitry.

    Input devices:

    For the detection of rotary and linear position, temperature, light, pressure, strain, airflow, humidity and audible and Ultrasonic sound.

    Output devices:

    For the generation of heat, light, rotary and linear actions, audible and ultrasonic sound and visual indication of voltage, time and number of events.

    Instrumentation circuitry:

    For the investigation of Wheatstone Bridges and current measurement techniques, linear and non-linear signal amplification, closed and open loop control, one, two and three term (PID) control, DC restoration of AC signals, signal transmission techniques and alarm generation.

    The comprehensive curriculum manuals provided covers the following topic areas:

    • An introduction to basic control systems.
    • An evaluation of the various Input devices.
    • Practical investigation of the various output devices.
    • Practical investigation of the Display devices.
    • Applications in practical systems, evaluation of input requirements.
    • In depth investigation / analysis of the numerous signal conditioning circuits.
    • Investigation of control system characteristics (On/Off,
    • Proportional, Proportional + Derivative & Proportional + Integral + Derivative)
    • Design and implementation of speed control systems, positional control systems, temperature control systems and light level control systems.

    Includes the following items:

    • Instrumentation and Transducer Trainer
    • 4mm Lead set
    • Technical manual
    • Curriculum manuals

    Hardware specifications:

    Input Transducers:

    • Carbon track, wire-wound and Precision rotary
    • potentiometers.
    • Slide potentiometers.
    • NTC thermistors.
    • Type 'K' thermocouples.
    • I.C. temperature sensor.
    • Photoconductive cell.
    • Photovoltaic cell.
    • Phototransistor.
    • PIN photodiode.
    • Linear variable differential transformer.
    • Linear variable capacitor.
    • Strain gauge.
    • Air flow sensor.
    • Air pressure sensor.
    • Slotted opto sensor.
    • Reflective opto sensor.
    • Inductive proximity sensor.
    • Hall effect sensor.
    • Precision servo potentiometer.
    • Techo-generator.
    • Humidity sensor.
    • Dynamic microphone.
    • Ultrasonic receiver.

    Output Transducers:

    • Heater.
    • Filament Lamp.
    • DC motor.
    • Solenoid air valve.
    • Ultrasonic transmitter.
    • Buzzer.
    • Loudspeaker.
    • Relay.
    • Solenoid.
    • Counter/timer unit with LED display.
    • Bargraph voltage indicator.
    • Analog 10V center-zero meter

    Signal Conditioning :

    • Buffers.
    • Inverters.
    • Comparator with switchable hysteresis.
    • Amplifiers with gain and offset control.
    • Current amplifier.
    • Summing amplifier.
    • Differential amplifier.
    • Instrumentation amplifiers.
    • AC amplifier.
    • Oscillator 40kHz.
    • Filter 40kHz.
    • Low-pass filter with switchable time constant.
    • Precision full-wave rectifier.
    • Sample and hold circuit.
    • Integrator with switchable time constant.
    • Differentiator with switchable time constant.
    • Converters: V/F, F/V, V/I, I/V.
    • Alarm oscillator with switchable latching.
    • Power amplifier.
    • Electronic switch.
