Gunn Microwave Test Bench

Gunn Microwave Test Bench
Gunn Microwave Test Bench
Product Code : 10406
Brand Name : Tesca
Product Description

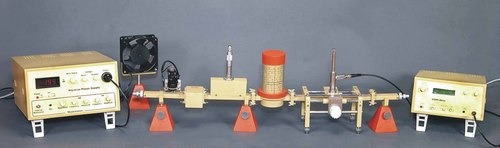

The Microwave Test Benches are precision made microwave systems, which use standard type rectangular wave-guide components to illustrate the essential elements of this field for study.

The equipment consist of :

  •  A selection of wave-guide components
  •  The power supply for the microwave source
  •  A detector
  •  A meter, which monitors the detector output
  •  Wall Chart
  •  Microwave Chart

These Training Benches are completely self-contained & provide the means to allow students to carry out practical work at extremely low cost. A comprehensive manual containing extensive microwave theory and a progressive series of assignments is supplied with the Trainer.

Experiments

  •  Measure the gain of a waveguide Horn Antenna
  •  Study & Measurement with Multihole Directional Coupler
  •  Study of Magic Tee, Q & Bandwidth Measurement in cavity resonator

Instruments

  • GPS ---------------------------------------------------------- 1
  • VSWR Meter -----------------------------------------------1
  • Components
  • Coaxial W/G Adaptor------------------------------------1
  • Cooling Fan -------------------------------------------------1
  • Detector Mount---------------------------------------------1
  • D.R.F. Meter ------------------------------------------------1
  • E-Plane Bend ----------------------------------------------2
  • Fixed Attenuator 10 dB----------------------------------1
  • Fixed Short-------------------------------------------------- 1
  • Gunn Oscillator---------------------------------------------1
  • H-Plane Bend -----------------------------------------------1
  • Isolator-------------------------------------------------------  1
  • Magic Tee --------------------------------------------------- 1
  • Matched Termination -------------------------------------1
  • Movable Short ----------------------------------------------1
  • M H D Coupler 10 dB ------------------------------------1
  • Pin Modulator -------------------------------------------- --1
  • Pyramidal Horn-------------------------------------------- -1
  • S S Tuner --------------------------------------------------- -1
  • Slotted Section----------------------------------------------1
  • Standard gain Horn Antenna------------------------- --1
  • Tunable Probe --------------------------------------------- -1
  • Variable Attenuator 20 dB ----------------------------- -1
  • Wave Guide Stand -----------------------------------------3
  • W/G Cavity Resonator ------------------------------------1

Accessories:

  • Mains Cord------------------------------------------------  --2
  • Cable BNC - BNC ---------------------------------------- -2
  • Op. Manual-------------------------------------------------  -1
  • Cable N type to TNC Cable -----------------------------1
