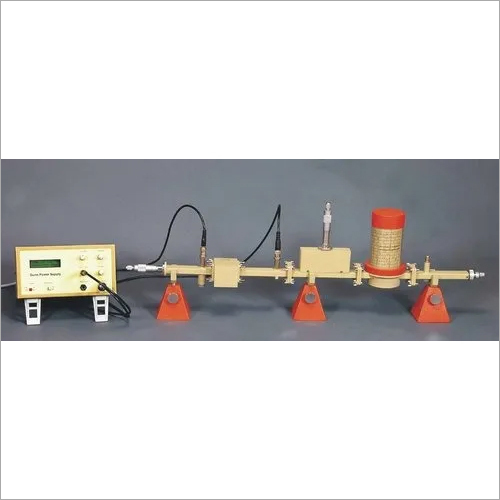

    Gunn Microwave Test Bench-2

    Gunn Microwave Test Bench-2
    Gunn Microwave Test Bench-2
    Send Inquiry
    Product Code : 10402
    Brand Name : Tesca
    Price And Quantity
    • Minimum Order Quantity
    • 1
    • Unit of Measure
    • Piece/Pieces
    • Price Range
    • 74500.00 - 105000.00 INR
    Product Specifications
    • Material
    • Metal
    • Dimensions
    • 340 x 110 x 210 Millimeter (mm)
    • Shape
    • Rectangle
    • Color
    • Yellow and Orange
    Product Description

    The Microwave Test Benches are precision made microwave systems, which use standard type rectangular wave-guide components to illustrate
    the essential elements of this field for study.

    The equipment consist of :

    • A selection of wave-guide components
    • The power supply for the microwave source
    • A detector
    • A meter, which monitors the detector output
    • Wall Chart
    • Microwave Components Chart
      These Training Benches are completely self-contained & provide the means to allow students to carry out practical work at extremely low cost. A comprehensive manual containing extensive microwave theory and a progressive series of assignments is supplied with the Trainer.

    Experiments

    • lStudy of Gunn Oscillator
    • Frequency, Guide Wavelength Measurement
    • SWR, Reflection Co-efficient Measurement
    • Impedance Measurement

    Instruments:
    GPS --------------------------------------------------------------1
    VSWR Meter ---------------------------------------------------1
    Components:
    Cooling Fan-----------------------------------------------------1
    Detector Mount-------------------------------------------------1
    Fixed Short------------------------------------------------------1
    D.R.F. Meter ----------------------------------------------------1
    Gunn Oscillator ------------------------------------------------1
    Isolator-----------------------------------------------------------1
    Matched Termination ------------------------------------------1
    Movable Short--------------------------------------------------1
    Pin Modulator --------------------------------------------------1
    S S Tuner --------------------------------------------------------1
    Slotted Section -------------------------------------------------1
    Tunable Probe --------------------------------------------------1
    Variable Attenuator 20 dB ------------------------------------1
    Wave Guide Stand ---------------------------------------------3

    Accessories:
    Cable BNC - BNC ---------------------------------------------2
    Mains Cord -----------------------------------------------------2
    Cable N type to TNC ------------------------------------------1
    Op. Manual -----------------------------------------------------1

    Trade Information
    • Payment Terms
    • Telegraphic Transfer (T/T)
    • Supply Ability
    • 100 Piece Per Month
    • Delivery Time
    • 4-5 Week
    • Sample Available
    • Yes
    • Sample Policy
    • Sample costs shipping and taxes has to be paid by the buyer
    • Main Export Market(s)
    • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
