    EPABX Trainer

    EPABX Trainer
    EPABX Trainer
    Send Inquiry
    Product Code : 10946
    Brand Name : Tesca
    Price And Quantity
    • Minimum Order Quantity
    • 1
    • Unit of Measure
    • Piece/Pieces
    • Price
    • 55610 INR
    Product Specifications
    • Material
    • Metal
    • Dimensions
    • 94 x 81 x 49 Millimeter (mm)
    • Shape
    • Rectangle
    • Color
    • Black
    Product Description

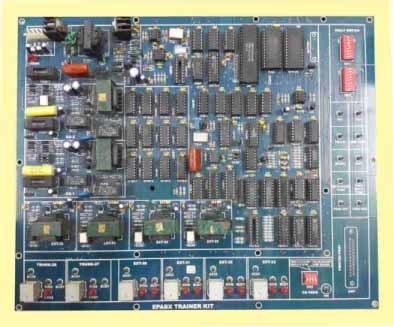

    10946 EPABX Trainer is a Microprocessor based system designed to help the students to understand the basic concept and working of a Telephone Exchange. All the components are mounted on a single PCB in functional blocks and have various Test points to monitor all kinds of telephonic signals.

    FEATURES:

    • Non-Blocking type tone dialling,
    • Distinctive Ringing,
    • DTMF/ Pulse Dialing, Music on hold,
    • Line Status Indication on the Exchange,
    • Executive Telephone with special features,
    • Control methods,
    • Abbreviated Dialing,
    • Automatic Call Back,
    • Barge-in-with/ without tone,
    • Call camp-on, Call Parking,
    • Call Pick-up, Call Restriction,
    • Call transfer,
    • Call Forwarding,
    • Follow me,
    • Conference 4-Party,
    • Direct outward dialing,
    • Do not Disturb,
    • Extension Privacy,
    • Extension to Extension Call,
    • Hotline on Extension,
    • Hunting Group,
    • Last Number Redial,
    • Selective Trunk Line Access,
    • Simultaneous Ringing,
    • Wake up Alarm/ Reminder Call.

    SPECIFICATIONS:

    • No. of Subscribers : Two DOT Lines, Four Extension Lines
    • Line Section : Opto Isolation for Trunk Lines and 4 Extension Lines.
    • Tone Generation : Dial Tone, Busy Tone, Ring Back Tone, Hold-on music etc.
    • CPU Section : 89E516RD Microcontroller based stored program control.
    • Memory : 72KB Program memory, 1KB RAM.
    • Speech Path : Fully Non- Blocking. Loop Resistance- Extension : 600 Ohms. - Co-line : 1200 Ohms.
    • Cross Talk Attenuator : >70dBm.
    • Idle Channel Voice : >70 dBm.
    • Insertion Loss : Extension to Extension not Less than 60 dBm. Extension to DOT Line not Less than 60 dBm.
    • Dial Pulse Ratio : 10pps +/-,10%
    • Input Power : 230V AC, 50Hz.
    • Longitudinal Balance : 60dBm.
    • Switch Faults : 8 Switch Faults are provided on board to study different effects on circuit.
    • Power Requirement : +11V, +23V, +5V, +15V.

    Optional:

    • Telephone Set : 4 Nos.
    Trade Information
    • Payment Terms
    • Telegraphic Transfer (T/T)
    • Supply Ability
    • 100 Piece Per Month
    • Delivery Time
    • 4-5 Week
    • Sample Available
    • Yes
    • Sample Policy
    • Sample costs shipping and taxes has to be paid by the buyer
    • Main Export Market(s)
    • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
