Electricity Trainer

Electricity Trainer
Electricity Trainer
Product Code : 33515
Brand Name : Tesca
Product Description

Electricity Trainer

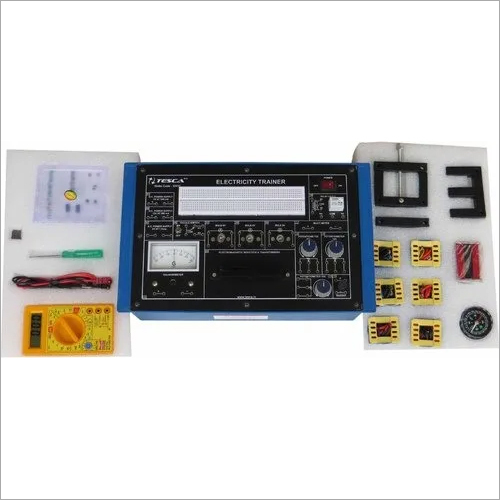

Electricity Trainer is a versatile training kit for a laboratory. It is designed such that all the basic electrical circuits can be tested with the help of this trainer kit. The experiments given with training system develop mental starting from an introduction to the circuit, basic fundamentals and complete circuits like series and parallel circuits, electromagnetic induction, coil behaviors with AC and DC circuits diode and transistor characteristics etc. This simple training kit provides a strong foundation for future studies in electrical or electronics. This takes students from the basic of ohm law, through simple series and parallel circuit analysis and into same elementary aspects of electronics where they will build circuits using capacitors, transistor and diodes. Student can study how the resistance of a light bulb filament changes as it heats up.

With this system a set of coils and cores are provided- These high quality coils and laminated iron cores provides an effective introduction to electromagnetic theory. Each coil is labeled with number of turns. These can be used in study of The Equipment is Useful for Students at level in engineering / technical institutes (EC & Telecom) Technical training centers in communication organizations, R&D personal and practicing engineering in research labs and industry.

Object:
Experiments that can be performed

    01 To study the Resistances individually, as well as in series and in parallel connections.
    02 To study the ohm law mathematical relation ship between three variables voltage (V), current (I) and resistance (R).
    03 To study the voltage and current flowing into the circuit.
    04 To study the behavior of current when light bulbs are connected in series/parallel circuit.
    05 To study the Kirch off Law for electrical circuits
    06 To study the R-C circuit and find out the behavior of capacitor in a R-C network and study the phase shift due to capacitor. .
    07 To study the L-C circuit and its oscillations.
    08 To study the characteristics of a semiconductor diode.
    09 To study the characteristics of a transistor.
    10 To understand the Faraday Law of electromagnetic induction.
    11 To study the behavior of current when inductance is introduced in the circuit.
    12 To study the Lenz Law and effect of eddy current.
    13 To study the relay and construct a switching circuit by using relay
    14 To study the Oersted experiment.
    15 To study the phenomenon of mutual induction.
    16 To construct and study the step down transforn1er with the help of given coils and cores.
    17 To construct and study the step up transformer.
    18 To study the effects of moving I core on a step up transformer.
    19 To convert a galvanometer into voltmeter.
    20 To convert a galvanometer into ammeter.

Specification & Features:

    DC power Supply : 5V. 200 MA
    DC power Supply : 12V. 200 MA
    AC power Supply : 6V, lA
    Relay : 12V
    Galvanometer : 30 -0 -30 .
    Galvanometer Resistance : 80 Ohm
    Light Bulbs (3 Nos.) : 6V
    Potentiometers (3 Nos.) : 25 Ohm. 1 W 10 K Ohm. 1 W
    Switch : 1 Pole, 2 Way Toggle Type
    Core Types : E, I, U
    Main Supply : 230V AC 50Hz
    Dimension : W 340 x H 110 x D 210
