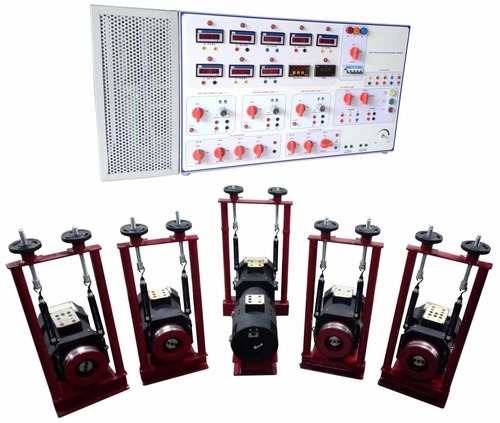

    Electrical Machine Trainer

    Electrical Machine Trainer
    Electrical Machine Trainer
    Send Inquiry
    Product Code : 69033
    Brand Name : Tesca
    Price And Quantity
    • Minimum Order Quantity
    • 1
    • Unit of Measure
    • Piece/Pieces
    • Price Range
    • 3000.00 - 50000.00 INR
    Product Specifications
    • Material
    • Metal
    • Dimensions
    • 40.4 x 45 x 30 Millimeter (mm)
    • Shape
    • Rectangle
    • Color
    • Black and Red
    Product Description
    Electrical Machine Trainer
    The Electrical Machine Trainer system is provided with specially designed integrated machines of nominal 300 W / 0.5 HP rating. Control Panels containing power supplies, drives, loading arrangements, electronic and digital instruments are provided along with Machines. The training system is suitable to study a wide range of electrical machine syllabi starting from the basic principle and operation to the detailed study of characteristics of different types of AC and DC Machines.

    This Machine Trainer consists of the following Machine and Control Panel Sets:-
    Machine Set - 1
    0.5 HP / 180 V / 1500 RPM / DC Integrated Machine, Coupled with 350 VA / 3 Phase / 415 V / 1500 RPM / Star connected / Rotor Wound / Stator Excited / 220 V DC Separate excitation / Manually regulated / 3 Phase Synchronous Machine with Damper winding. Provided with base and couplings. DC Machine will be Trunnion Mounted Dynamometer type with Linear scales (2 nos.) for torque measurement. DC Machine can run as DC Shunt, Series & Compound Motor as well as Generator. 3 Phase Synchronous machine can run as 3 Phase Synchronous Alternator & 3 Phase Auto Synchronous Motor

    Machine Set - 2
    0.5 HP / 415 V Stator / 200 V Star connected Rotor / 1440 RPM / 3 Phase / Slip Ring Induction Motor complete with Mechanical Loading Arrangement having Aluminum Drum Mounted on Motor Shaft, Linear spring balances (2 nos.), Friction belt & necessary frame work for Torque Measurement

    Machine Set - 3
    0.5 HP / 415 V / 1440 2880 RPM / 3 Phase / SQ. Cage Induction Motor with Dhalandar Winding for 2 speed operation. Complete with Mechanical Loading Arrangement having Aluminum Drum Mounted on Motor Shaft, Linear spring balances (2 nos.), Friction belt & necessary frame work for Torque Measurement

    Machine Set - 4
    0.5 HP / 230 V / 1 Phase / 1440 RPM / SQ. cage Induction Integrated Motor. Complete with Mechanical Loading Arrangement having Aluminum Drum Mounted on Motor Shaft, Linear spring balances (2 nos.), Friction belt & necessary frame work for Torque Measurement. This Motor can run as Capacitor Start Capacitor Run (CSCR), Capacitor Start Induction Run (CSIR) and Split Phase Single Phase Sq. Cage Induction Motor

    Machine Set - 5
    0.5 HP / 160 V DC 220 VAC / 1500 2000 RPM / Universal (AC Series) Motor. Complete with Mechanical Loading Arrangement having Aluminum Drum Mounted on Motor Shaft, Linear spring balances (2 nos.), Friction belt & necessary frame work for Torque Measurement

    Machine Set - 6
    0.5 HP / 230 VAC / 1500 RPM / Repulsion Motor Complete with Mechanical Loading Arrangement having Aluminum Drum Mounted on Motor Shaft, Linear spring balances (2 nos.), Friction belt & necessary frame work for Torque Measurement


    Trade Information
    • Payment Terms
    • Telegraphic Transfer (T/T)
    • Supply Ability
    • 100 Piece Per Month
    • Delivery Time
    • 4-5 Week
    • Sample Available
    • Yes
    • Sample Policy
    • Sample costs shipping and taxes has to be paid by the buyer
    • Main Export Market(s)
    • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
