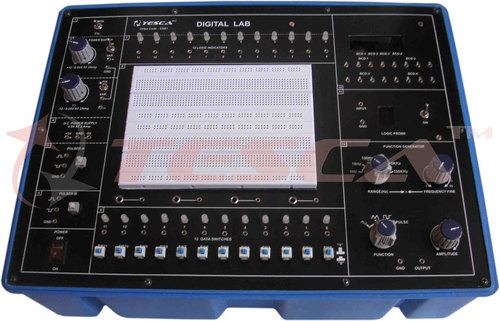

      Product Code : 33501
      Brand Name : TESCA
      Price And Quantity
      • Minimum Order Quantity
      • 1 Piece
      • Price
      • 416 USD ($)
      Product Description
      Experimental Coverage:
      Features:
      Bread Board : Unique solder-less large size, spring loaded breadboard consisting of two Terminal Strips with 1280 tie
      points and 4 Distribution Strips with 100 tie points each, totaling to 1680 tie points. (Size : 112mm x
      170mm approx)
      Regulated DC Power Supply : +5V at 1 Amp, -5V at 500 mA, 3 to +15V at 500mA, and -3 to -15V at 500 mA.
      Pulse Generator : 1 Hz to 1 MHz in 6 Steps. Variable in between steps
      - Amplitude : 3-15V (CMOS), 5V (TTL)
      - Duty Cycle : 50% TTL / CMOS Output
      Pulsar Switches : 2 independent buffered bounce free manual pulser (useful for freezing the action of each stage of the
      counter after every clock pulse)
      Data Switches : 12 Nos. independent buffered logic level inputs to select High / Low TTL levels, each with a bi-color
      LED to indicate high / low status and termination.
      Logic Indicators : 12 Nos. independent buffered logic level indicators for High / Low status indication with bi-color LED
      for digital outputs
      Seven Segment Display : 2 Nos. BCD to Seven Segment Decoder / Driver IC with terminals
      Logic Probe : Logic level indicator for TTL / CMOS
      CMOS/TTL : Provided
      Power : 230 V ± 10%, 50 Hz
      Components Provided : ICs-4001/1, 4049/1,4069/1, 7400/1, 7402/1, 7404/1, 7406/1, 7408/2, 7410/2, 7411/3, 7420/2,7432/3,
      7474/2,7476/2,7486/1.Resistors-330E/1,1K/2, 1K8/1,,15K/1, 47K/1.1M/2, Capacitors- 0.01mF/1,
      0.1mF/1, 0.22 mF/1,Crystal-32.768MHz/1.
      Accessories : Mains cord, Operating and Experimental manual, Red & Black patch cords (2mm with Pin) 10 each,
      Red & Black patch cord (Pin to Pin) 10 each. Wire 24/25 SWG. 1Meter each 5 Colour Instruction
      manual : Strongly supported by detailed operating instructions.
      01. Logic gates operation
      02. To verify De-morgan’s theorem with boolean logic equations
      03. Binary to Gray code conversion
      04. Gray code to Binary conversion
      05. Binary to Excess-3 code conversion
      06. Binary Adder and Subtractor
      07. Binary Multiplier
      08. EX-OR gate implementation
      09. Application of EX-OR gate
      10. Johnson Counter
      11. To verify the dual nature of Logic Gates
      12. Study of Flip-Flops RS, JK, D&T
      13. Multiplexer and Demultiplexer
      14. 4 Bit Binary up and down counter
      15. Study of 8 to 3 Line Encoder
      16. Study of 3 to 8 Line Decoder
      17. Study of Shift Register (SIPO)
      18. CMOS-TTL Interfacing
      19. Study of Crystal oscillator
      20. Study of pulse stretcher circuit
