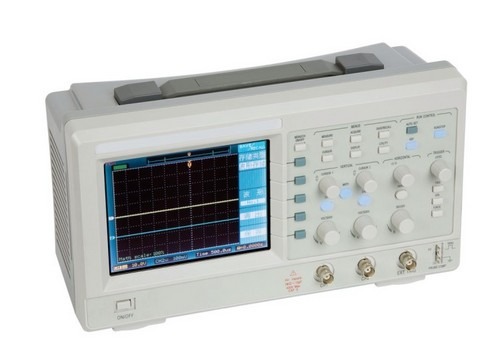

      Digital Storage Oscilloscope 40MHz

      Digital Storage Oscilloscope 40MHz
      Digital Storage Oscilloscope 40MHz
      Send Inquiry
      Product Code : 17070
      Brand Name : Tesca
      Price And Quantity
      • Minimum Order Quantity
      • 1 Piece
      • Price
      • 80311 INR
      Product Specifications
      • Use
      • For Laboratory
      • Material
      • Metal
      • Dimensions
      • 8.12 x 8.12 x 2.54 Millimeter (mm)
      • Shape
      • Rectangle
      • Color
      • White
      Product Description

      Specifications

      17086

      17070

      17071

      17072

       17073

      17074


      Channels

      2+Ext.Trigger




      Bandwidth

      25MHz

      40MHz

      60MHz

      100MHz

      150MHz

      200MHz


      Rising time

      13.8ns

      8.7ns

      5.8ns

      3.5ns

      2.3ns

      1.8ns


      Time base

      5ns to 50s/div

      2ns to 50s/div

      1ns to 50s/div

      1ns to 50s/div


      Real time sample rate

      500MSa/s

      1GSa/s




      Equivalent sample rate

      50GSa/s




      Input impedance

      1MW//13pF




      Input coupling

      DC, AC, GND




      Trigger

      Edge, video, pulse, delay




      Acquisition modes

      Auto, normal, single




      Trigger sources

      CH1, CH2, Ext, Ext/5, Ext(50)




      Horizontal accuracy

      ±0.01%




      Vertical sensitivity

      2 mV/div to 5V/div




      Vertical resolution

      8bit




      Max. input voltage

      400V(DC+AC peak),5Vrms@50




      Auto measurements

      Vpp, Vamp, Vrms, Vmin, Vtop,Vbase,Vbase,Vavg,Freq,Period,Rise time






      Fall time,+width,-width,overshoot,preshoot,+duty,-duty,etc




      Math

      +-xƒ·FFT




      Storage

      10waveforms,10 steps




      FFT

      Window

      Hanning, Hamming, Blackman-harris, rectangular




      Sample points

      1024points




      X-Y

      Bandwidth

      25MHz

      40MHz

      60MHz

      100MHz

      150MHz

      200MHz


      Phase diff

      +3 degrees




      Display

      A/CA: mono/color,320 240 resolution




      Power supply

      Worldwide 100-225 V/40VA Max




      Interface

      USB port




      Accessories

      Probe 2, power cord, user manual





















      Trade Information
      • Payment Terms
      • Telegraphic Transfer (T/T)
      • Supply Ability
      • 100 Piece Piece Per Month
      • Delivery Time
      • 4-5 Week
      • Sample Available
      • Yes
      • Sample Policy
      • Sample costs shipping and taxes has to be paid by the buyer
      • Main Export Market(s)
      • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
