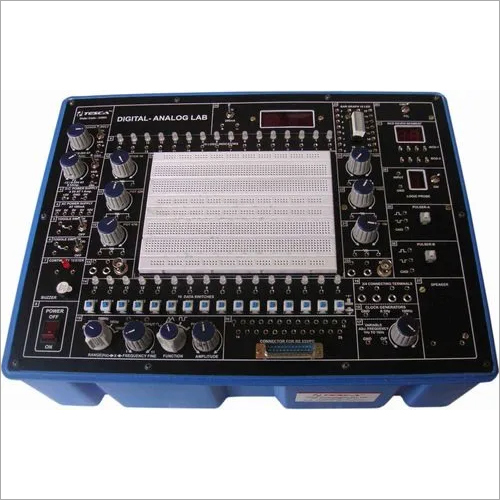

      Digital- Analog Lab

      The DIGITAL-ANALOG LAB is intended for elementary as well as advance training of Digital & Analog electronics. The trainer covers regular digital & analog circuits by solder-less interconnections on breadboard and as well as compatible with all optional modules, through use of 2mm brass terminals and patch cords. Various clock generators, logic level input/output indicators and DC regulated power supplies etc. are in-built. The unit housed in attractive enclosure is supplied with mains cord, patch cords, Instruction manual and Component Set.

      Experimental Coverage:

      Analog
      • 001. Study of Diodes in DC circuits
      • 002. Study of Light Emitting Diodes in DC Circuits
      • 003. Study of Half wave rectifier
      • 004. Study of Full wave rectifier
      • 005. Study of Zener Diode as a voltage regulator
      • 006. Study of transistor series voltage regulator
      • 007. Study of transistor shunt voltage regulator
      • 008. Study of Low pass filter
      • 009. Study of High pass filter
      • 010. Study of band pass filter
      • 011. Study of CE configuration of NPN transistor
      • 012. Study of CB configuration of NPN transistor
      • 013. Study of CE amplifier
      • 014. Study of Monostable multi vibrator using transistor
      • 015. Study of Bistable multi vibrator using transistor
      • 016. Study of As table multi vibrator using transistor
      Digital
      • Logic gates operation
      • To verify De-morgan's theorem With boolean logic equations
      • Binary to Gray code conversion
      • Gray code to Binary conversion
      • Binary to Excess-3 code conversion
      • Binary Addition and Subtractor
      • Binary Multiplier
      • EX-OR gate implementation
      • Application of EX-OR gate
      • Johnson Counter
      • To verify the dual nature of Logic Gates
      • Study of Flip-Flops RS, JK, D&T
      • Multiplexer and De-multiplexer
      • 4 Bit Binary up and down counter
      • Study of 8 to 3 Line Encoder
      • Study of 3 to 8 Line Decoder
      • Study of Shift Register (SIPO)
      • CMOS-TTL Interfacing
      • Study of Crystal oscillator
      • Study of pulse stretcher circuit
      FEATURES:
      • Bread Board : Unique solder-less large size, spring loaded breadboard consisting of two Terminal Strips with 1280 tie points and 4 Distribution Strip swith 100 tie points each, totaling to 1680 tie points. (Size:112mm x170mm)
      • Regulated DC Power Supply : +5 V at 1 Amp, -5 V at 1Amp, +12 V/ 0 to 20V at 500mA, and -12 V/ 0 to -20 V at 500 mA
      • AC Supply : 5-0-5V, 10-0-10V at 100mA. Can be used as 5V, 10V, 15V, 20V, and also as center tap
      • Function Generator : Sine / Square / Triangular / Pulse waveform frequency 1 Hz to 110 Khz in 5 Steps. Variable in between steps. Sine / Square / Triangular waveform output 50mV ~ 10Vpp variable
      • Clock Generators : 0.1Hz and 100 Hz, Independent fixed TTL 5V outputs
      • Variable Clock Generators : low frequency variable clock 1 Hz to 10 Hz Fixed TTL 5V output
      • Pulser Switch : 2 independent buffered bounce free manual pulser (useful for freezing the action of each stage of the counter after every clock pulse)
      • Data Switch : 16 independent logic level inputs to select High / Low TTL levels, each with a LED to indicate high / low status and termination
      • Logic Indicators : 16 independent buffered logic level indicators for High / Low status indication of digital outputs Speaker : 8 ohms miniature speaker with terminations
      • Digital meter (3 1/2 Digit) : Dual range DC Voltmeter 0-20V / Ammeter 0-200mA
      • Continuity Tester : For testing the continuity. Provided with Beeper Sound
      • Potentiometers : 6 Potentiometers (1K, 22K, 47k, 100K, 100K and 1Meg) with terminals
      •  Many More
