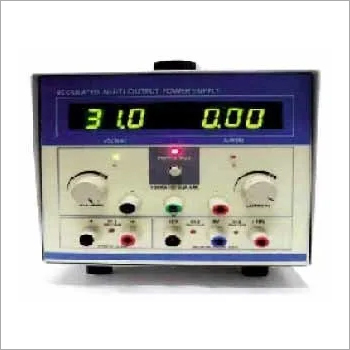

    DC Power Supply

    DC Power Supply
    DC Power Supply
    Send Inquiry
    Product Code : 17131
    Brand Name : Tesca
    Price And Quantity
    • Minimum Order Quantity
    • 1
    • Unit of Measure
    • Piece/Pieces
    • Price Range
    • 10000.00 - 85000.00 INR
    Product Specifications
    • Use
    • For Laboratory
    • Material
    • Metal
    • Dimensions
    • 425 x 105 x 38 Millimeter (mm)
    • Shape
    • Rectangle
    • Color
    • White
    Product Description

    Technical Specifications:

    • Output Voltage : 0-30.0 Volt
    • Output Current : 0-2.00 Ampere.
    • Metering: 7 segment LED 3 Digit DPM Green/ Red
    • Meter Accuracy : ±3 counts

    Constant Current Mode:

    • Line Regulation : ±0.1% ±500mA for ±10% line change.
    • Load Regulation : ±0.1% ±500mA for change in output voltage from 0 - to maximum
    • Ripple & Noise : 0.05% rms.
    • Mode of Indication CV : GREEN LED indication for Constant Voltage (CV)operating mode.
    • Mode of Indication CC : RED LED indication for Constant Current (CC) operating mode.
    • Output Polarity : Floating with respect to ground.
    • Overload & Short Circuit : Automatic protected
    • Short Circuit Protection : Automatic
    • Over temperature Protection : Automatic Cut off and Resume

    Constant Voltage Mode:

    • Line Regulation : ±0.1% ±2mV for ±10% change in line output.
    • Load Regulation : ±0.1% ±2mV for load change from zero to full load.
    • Ripple & Noise : <0.01% rms.

    Stability:

    • Total drift in CV mode : < ±0.2% + 5mV (within 8 hours after warm-up)
    • Total drift in CC mode : < ±0.5% + 5mA (within 8 hours after warm-up)
    • Operating Temperature : 0-50°C ±10%.

    Dual Tracking:

    • 0±15 @ 0.5 Ampere with over load and Short circuit protection & indication

    Fixed Output:

    • 5 Volt 1 Ampere with over load and Short circuit protection & indication.
    • Line Voltage : 230V AC ±10% 50Hz,single phase

    Dimension:

    • 150.0mm(H) 170.0mm(W) 325.0mm(D)
    • Weight : 6.0kg(Approx.)
    Trade Information
    • Payment Terms
    • Telegraphic Transfer (T/T)
    • Supply Ability
    • 100 Piece Per Month
    • Delivery Time
    • 4-5 Week
    • Sample Available
    • Yes
    • Sample Policy
    • Sample costs shipping and taxes has to be paid by the buyer
    • Main Export Market(s)
    • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
