Antenna Trainer

Antenna Trainer
Antenna Trainer
Product Code : 10007
Brand Name : Tesca
Product Description

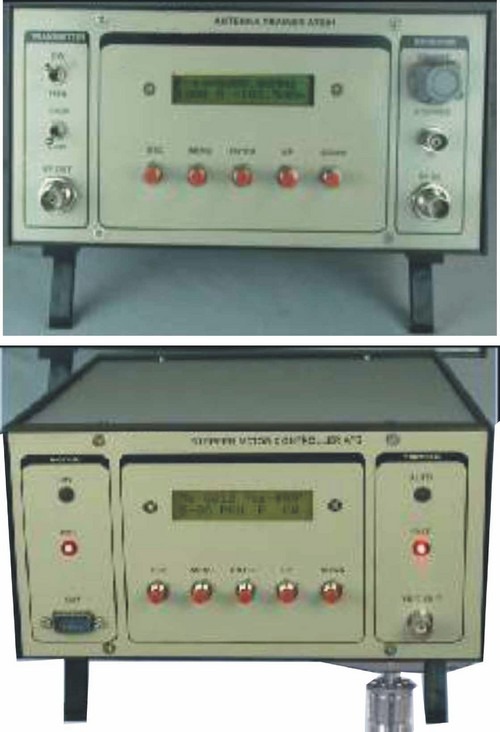

Antenna Trainer Features:
* PLL receiver 86 - 860 MHz; 50KHz step Size in Rx
* Crystal Locked transmitter 100-1000MHz;50MHz step size
* RF Power measurement in 0.1 dB resolution
* 110 dB dynamic range.
* Directional Coupler for VSWR/ Return Loss.
* RS232 interface with polar/cartesian plotting software
* 1000 location Frequency and level storage in receiver

Technical Specifications:
Frequency range : 86 - 860 Mhz PLL for Rx
Step size : 0.05, 0.1,0.25,0.5, 1, 10,100 MHz
Accuracy : 0.01%
Display : 16X2 Backlit LCD
Controls : Menu, Enter, Escape, Up & Down
Memory : 1000 frequency store/recall
Modulation FM : Internal 1KHz
Frequency range : 100 - 1000 MHz crystal locked for Tx
Step size : 50 MHz
RF Level : 90 dBuV typical
Attenuator : 20dB internal switchable
Measurements : RF level in pW, dBm, dBuV, dBr
Resolution : 0.1dB
Dynamic range : 110 dB (70dB log +40dB attenuator)
Speaker : Inbuilt for Audio output
PC interface : RS 232 connectivity to PC for antenna plotting using supplied software
Auto mode : Data logging for polar/cartesian plots.

Areas of experimentation and scope of study
* Inverse square law of propagation.
* Radiation pattern of an Omni and directional antenna.
* Vertical, Horizontal polarized antennas.
* Polarization discrimination linear antennas
* Resonant and non-resonant antenna.
* Reciprocity of antenna.
* Current distribution of an antenna.
* Antenna parameters:
* Radiation pattern E & H Plane - Polar & Cartesian Plots
* Directive gain, beam width (Half Power/10dB), front to back ratio, plane of polarization, side lobe level & angle.
* Antenna resonance, VSWR and bandwidth using Directional coupler and adjust the antenna.
* Comparative study of antennas.
* Significance of parasitic element dimensions.
* Construct antenna using antenna kit
* Tone communication link using antennas. Plus lot more
