    Advance Fiber Optic Trainer

    Advance Fiber Optic Trainer
    Advance Fiber Optic Trainer
    Send Inquiry
    Product Code : Advance Fiber Optic
    Brand Name : Tesca
    Price And Quantity
    • Minimum Order Quantity
    • 1
    • Unit of Measure
    • Piece/Pieces
    • Price Range
    • 3000.00 - 10000.00 INR
    Product Specifications
    • Material
    • Metal
    • Dimensions
    • 340 x 110 x 210 Millimeter (mm)
    • Shape
    • Rectangle
    • Color
    • Blue
    Product Description

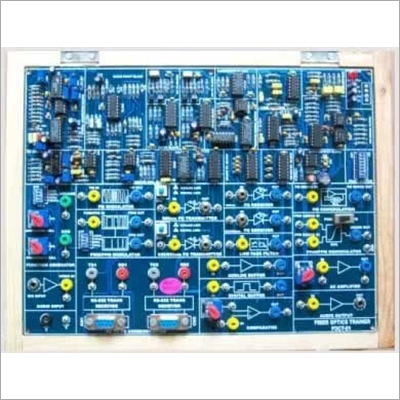

    Order Code -28526 is a single board Fiber Optic Trainer Kit to study the characteristics of Fiber using Digital and Analog techniques. This kit also facilitates with digital and analog Modulation & Demodulation communication techniques.

    SPECIFICATIONS:

    • Two Transmitter Fiber Optics LED having peak wavelength of emission 660nm & 950nm.
    • Two Receiver Fiber Optic photo detector.
    • Modulation & Demodulation Techniques using Direct AM, FM, PPM, PWM.
    • On-board Analog & Digital Drivers.
    • On-board AC Amplifiers.
    • On-board PLL Detector
    • Analog Band Width 350 Khz.
    • Digital Band Width 2.5 Khz.
    • 4th order Butter worth 3.4KHz Low Pass Filter.
    • On-board 1Hz. To 10 KHz sine wave (amplitude adjustable),
    • Square wave (TTL)
    • FO voice link using microphone & speaker
    • RS-232C PC to PC Serial link using 9 Pin D -type.
    • Four Switched Faults for transmitter & receiver.
    • Fiber Optics Cable Connector type Standard SMA .
    • Duly polished fiber at both end for Numerical Aperture Measurement.
    • Step indexed multimode PMMA plastic cable.
    • Core Refractive Index 1.492.
    • Clad Refractive Index 1.406.
    • Numerical aperture Better than 0.5.
    • Acceptance Angle Better than 60o
    • Fiber Diameter 1000 microns.
    • Outer Diameter 2.2mm.
    • Fiber Length 5m & 1m.
    • In-Built Power Supply +5V/1.5A, ±12V/250mA.
    • Interconnections 2 mm Banana Sockets
    • Attractive Wooden enclosures of Light weight Australian Pine Wood.
    • User's Manual with set of Patch Chords.
    • 230mm x 140mm x 80mm (L x W x H)
    • Weight 2 Kgs.

    FEATUREs

    • 660nm and 950nm Transmitter.
    • Two Nos. Of Photo Detector.
    • On-board Sine & Square wave generator.
    • O n - b o a r d F M M o d u l a t i o n & Demodulation
    • On-board PWM Modulation & demodulation.
    • On-board PPM Modulation & Demodulation.
    • On-board 4th Order Low Pass Filer.
    • On-boad Fault Switch.
    • In-Built Power Supply

    OBJECT:

    • Setting up Fiber Optic Analog Link
    • Setting up Fiber Optic Digital Link
    • Study of Intensity Modulation Technique using Analog Input Signal
    • Study of Intensity Modulation Technique using Digital Input Signal
    • Setting up of Propagation Loss in Fiber Optic
    • Study of Bending Loss.
    • Measurement of Optical Power using Optical Power Meter
    • Measurement of Propagation loss using Optical Power Meter
    • Measurement of Numerical Aperture
    • Characteristics of F-O Converter using OPM
    • Characteristics of Fiber Optic communication Link
    • Setting up of Fiber Voice Link using Intensity Mode
    • Study of Frequency Modulation and Demodulation
    • Study of Pulse Width Modulation and Demodulation
    • Study of Pulse Position Modulation and Demodulation
    • Study of PC to PC Communication using Fiber Optics Digital Link
